Name: TELTONIKA ATEX EYE SENSOR
Brand: XTRACK STORE
SKU: BTSID1EXE502
Price: 44.00 USD
Availability: InStock

TELTONIKA ATEX EYE SENSOR

$44.00 USD

TELTONIKA ATEX EYE SENSOR

Low stock

$44.00 USD

Shipping calculated at checkout.

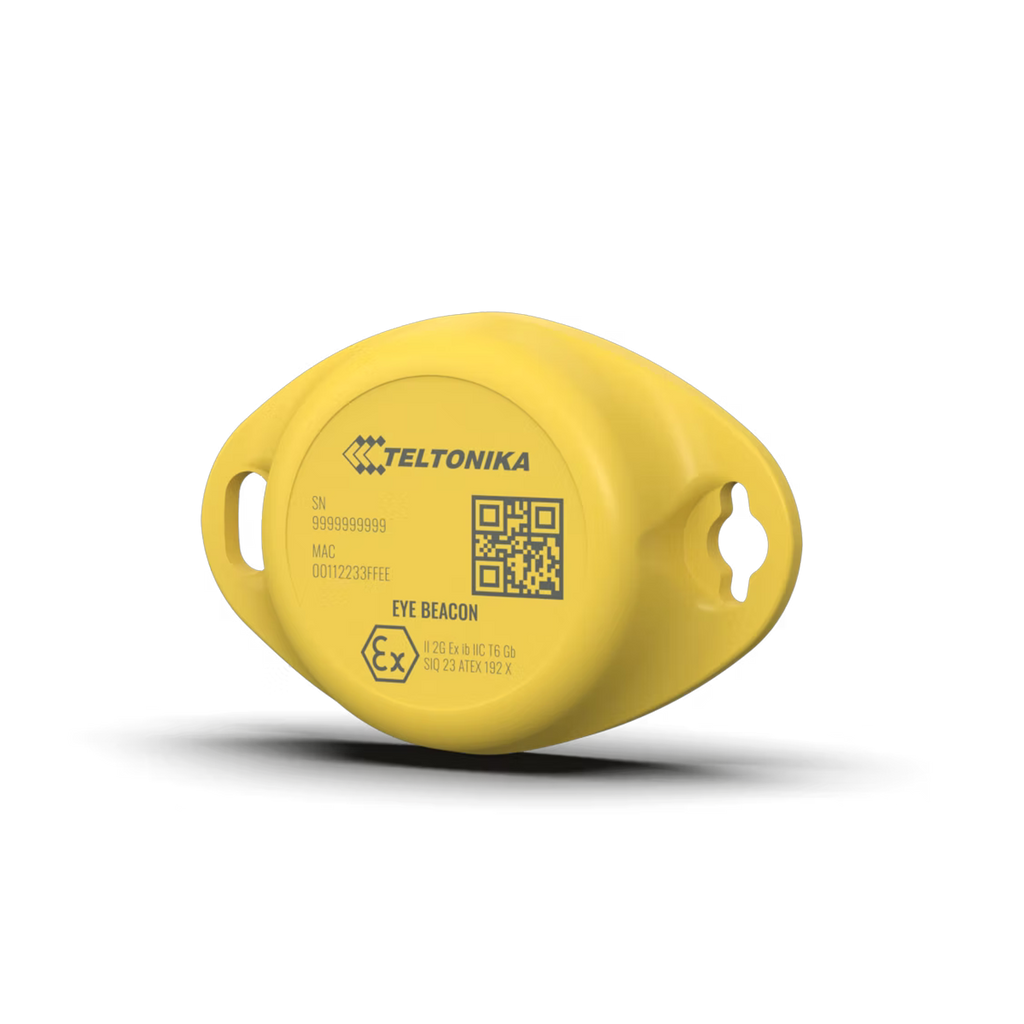

Meet Teltonika’s ATEX Eye Beacon — a rugged Bluetooth Low Energy sensor designed to withstand demanding environments while delivering simple, cost-effective configuration and seamless integration with your existing tracking ecosystem.

TELTONIKA ATEX EYE SENSOR

Smart & Flexible Design

Compact Bluetooth EYE sensors and beacons can be easily mounted in up to 4 different ways, offering maximum installation flexibility. The IP67-rated casing ensures reliable performance in harsh environments, protecting against dust and water.

Enhanced Durability (ATEX-Certified)

ATEX-certified EYE devices are specifically designed for use in hazardous environments such as oil, gas, and chemical industries. Reinforced construction ensures safe and reliable operation in demanding conditions.

Real-Time Asset Tracking in Hazardous Areas

Keep full visibility of your assets at all times. These industrial Bluetooth beacons enable precise asset tracking in challenging environments, helping improve safety, accountability, and operational efficiency.

Teltonika ATEX Eye Sensor Easy Configuration via EYE APP

Easy Setup with EYE App

Configure and manage your devices effortlessly using the Teltonika EYE App. This intuitive mobile application allows for quick setup, real-time data scanning, and seamless device management.

ATEX Bluetooth EYE Sensor – Specifications

Core Functionalities

Advanced industrial Bluetooth beacon designed for hazardous environments with the following features:

Beacon ID tracking
Temperature monitoring
Humidity detection
Movement sensing
Magnetic field detection

Electronics

Chipset: STMicroelectronics BlueNRG-2
Optimized low-power microcontroller for long-term deployments

Connectivity

Reliable Bluetooth Low Energy (BLE) beacon performance:

Bluetooth 4.2 compliant, Bluetooth 5.2 certified
Up to 80 m range (open environment)
Transmission power: up to 8 dBm
Receiver sensitivity: -88 dBm

Battery & Power

Built for long-lasting asset tracking in hazardous zones:

Battery type: Lithium / Manganese Dioxide
Capacity: 600 mAh
Up to 2.5+ years battery life (Tx = 2 dBm, 3 sec interval)
Up to 4+ years battery life (default settings, 5 sec interval)
Up to 5+ years battery life (10 sec interval)

Rugged ATEX Design

Engineered for safety and durability in explosive environments:

ATEX-certified casing for hazardous industries (oil, gas, chemical)
IP67-rated protection (dustproof & waterproof)
Reinforced enclosure for harsh conditions
Dual mounting points on each side for flexible installation

Environmental Performance

Designed for extreme operating conditions:

Operating temperature: -20 °C to +60 °C (-4 °F to +140 °F)
Humidity: 0% to 100% (non-condensing)

Protocol Compatibility

Supports industry-standard beacon protocols:

iBeacon*
Eddystone
Teltonika EYE Sensor protocol

*Note: iOS devices may have limitations in displaying certain iBeacon data.

Physical Specs

Weight: 18 g
Compact and lightweight design for easy deployment

Find more specification details here: Teltonika ATEX EYE SENSOR Datasheet

Documents

ATEX Eye Sensor Datasheet
EYE SENSOR BTSMP1 Quick Manual (EN)

Downloads

EN12830 EYE APP

Certification & Approvals

Teltonika ATEX EYE SENSOR

Peace of mind with a 1-year manufacturer warranty, ensuring your device is protected from defects and malfunctions.
